ZkRouting SDK

Anonymous routing for every FRC20 transfer

Introduction

Privacy-Routing-SDK provides simple and integration-friendly APIs for converting FRC20 transfers into anonymous transfers that break the link between senders and receivers. With just a small modification to your DApp's frontend, you can enhance your DeFi, Lending, or other project with privacy features.

How It Works

Privacy-Routing-SDK is powered by zero-knowledge proof technology, allowing for the link between senders and receivers to be broken. The transfer can be completed in just four API calls

  1. depositFRC20() to deposit FRC20 tokens as a native asset in the ZK layer.

  2. barToAbar() to wrap the native asset in an anonymous asset.

  3. abarTobar() to unwrap the anonymous asset back to its native form.

  4. barToEVM() to withdraw the native asset back to the EVM.

Note: In Findora's native chain, transparent assets are represented as BAR, while shielded assets are represented as ABAR.

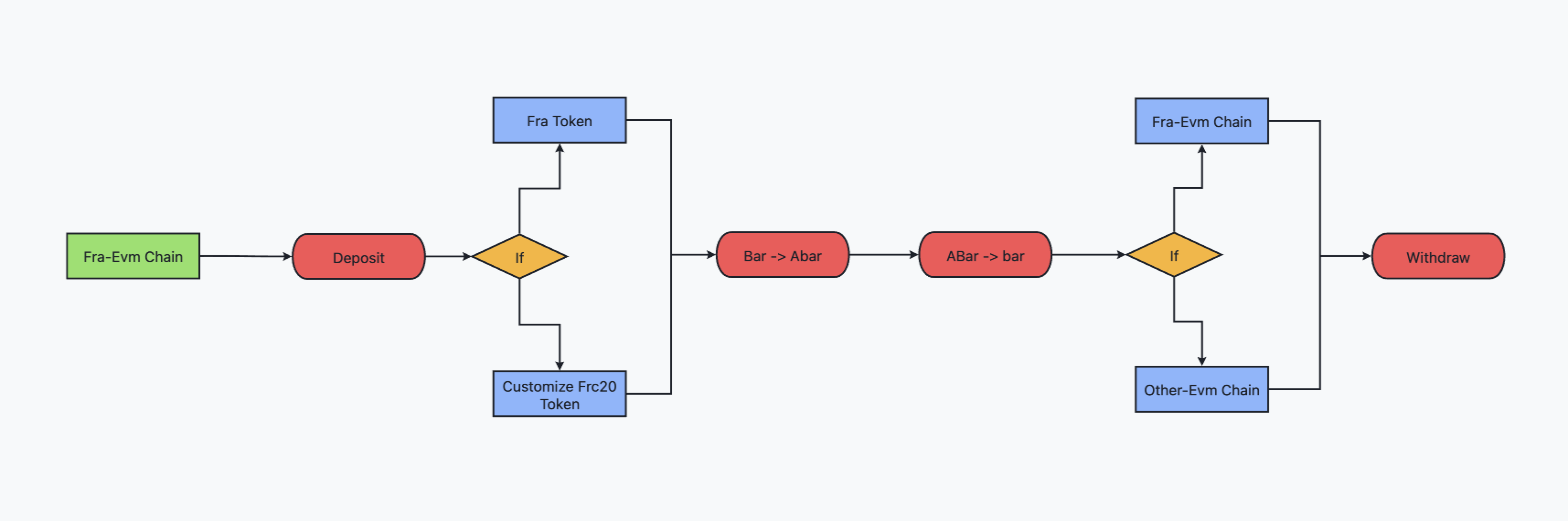

The privacy routing process starts with funds being transferred from the sender's EVM address to the privacy layer for privacy shielding, and then back to the receiver's EVM address. During the privacy routing process, one-time receiver addresses are dynamically created and the asset passes through the privacy layer. The key steps are barToAbar() and abarTobar(), where the asset is wrapped and unwrapped using one-time stealth addresses, thereby breaking the link between the sender and receiver. The next version of the Privacy-Routing-SDK will simplify the process even further by consolidating multiple API calls into one or two calls to reduce complexity.

Quickstart Tutorial

Developers can take a look at the Privacy-Routing-SDK example on Github.

Note: Privacy-Routing-SDK is now available only on the Findora Forge Testnet. See network settings for RPC details and request Forge EVM testnet FRA tokens here.

DeFi Integration

The Findora Privacy-Routing-SDK is designed as a general tool for FRC20 tokens and can be integrated into various projects in different ways. In the context of DeFi, the simplest way to integrate the SDK is by adding it to the frontend without modifying the smart contracts.

As an example, let's consider PancakeSwap and a scenario where a user wants to swap 10 USDT to 9.98 USDC on the frontend page. The following are the adjusted steps for this scenario

Step 1: Routing:

  • User address is: 0x661746C36C4379B5994d9883f3bFf662b711Be76

  • Call depositFRC20() to deposit 10 USDT as a native asset in the privacy layer.

  • Call barToAbar() to wrap the native asset (10 USDT) in an anonymous asset.

  • Call abarTobar() to unwrap the anonymous asset (10 USDT) back to its native form.

  • Call barToEVM() to withdraw the native asset (10 USDT) back to an EVM one-time address.

  • One-time receiver is: 0x7366F30D830048dFD947662d92421807bcB7Fdd3

Upon completion of the privacy routing process, the link between the user address and the one-time receiver address holding 10 USDT is cut off.

Step 2: Swap:

  • Switches to one-time receiver account: 0x7366F30D830048dFD947662d92421807bcB7Fdd3.

  • Performs a normal swap of 10 USDT to 9.98 USDC.

  • Final receiver address doesn’t really matter. It could be the original user address 0x661746C36C4379B5994d9883f3bFf662b711Be76 , or it could be a different address.

The private swap is now complete.

Simple Steps to Use

First clone and add the SDK to your project. You can also use package managers.

$ npm install privacy-routing-sdk

Copy https://github.com/FindoraNetwork/wasm-js-bindings/tree/forge_2022 contents to `external_resources/findora-wallet-wasm` in your project directory

"findora-wallet-wasm": "./external_resources/findora-wallet-wasm"

in package.json. Example https://github.com/FindoraNetwork/privacy-routing-sdk-example/tree/main/external_resources/findora-wallet-wasm

Import SDK

// Use appropriate ways to importing the privacy-routing-sdk
import { Sdk } from "privacy-routing-sdk";
const { Sdk } = require("privacy-routing-sdk");

Initiate SDK

import { Sdk } from "privacy-routing-sdk";

const ENV_CONFIG = {
  hostUrl: "findora RPC",
};

// Initiating the SDK configuration
await Sdk.init(ENV_CONFIG);

Forge Testnet Configuration

export const FINDORA_NETWORK = {
  chainId: 2154,
  chainName: 'Findora',
  nativeCurrency: {
    name: 'FRA',
    symbol: 'FRA',
    decimals: 18,
  },
  rpcUrls: ['https://prod-forge.prod.findora.org:8545'],
  blockExplorerUrls: ['https://prod-forge-blockscout.prod.findora.org/'],
};

export const CONTRACTS_ADDRESS = {
  simBridge: '0x893c29D3e6520466005C18683466136D73641201',
  prismBridge: '0x899d4d8f441E5B59EB21ceb58fce723bb5A85C55',
};

The APIs

Generate the temp wallets for intermediate accounts,

// Wallets
const findoraWallets = await findora.keypair.getWallet();
const { walletStart, walletEnd, anonWallet } = findoraWallets;t

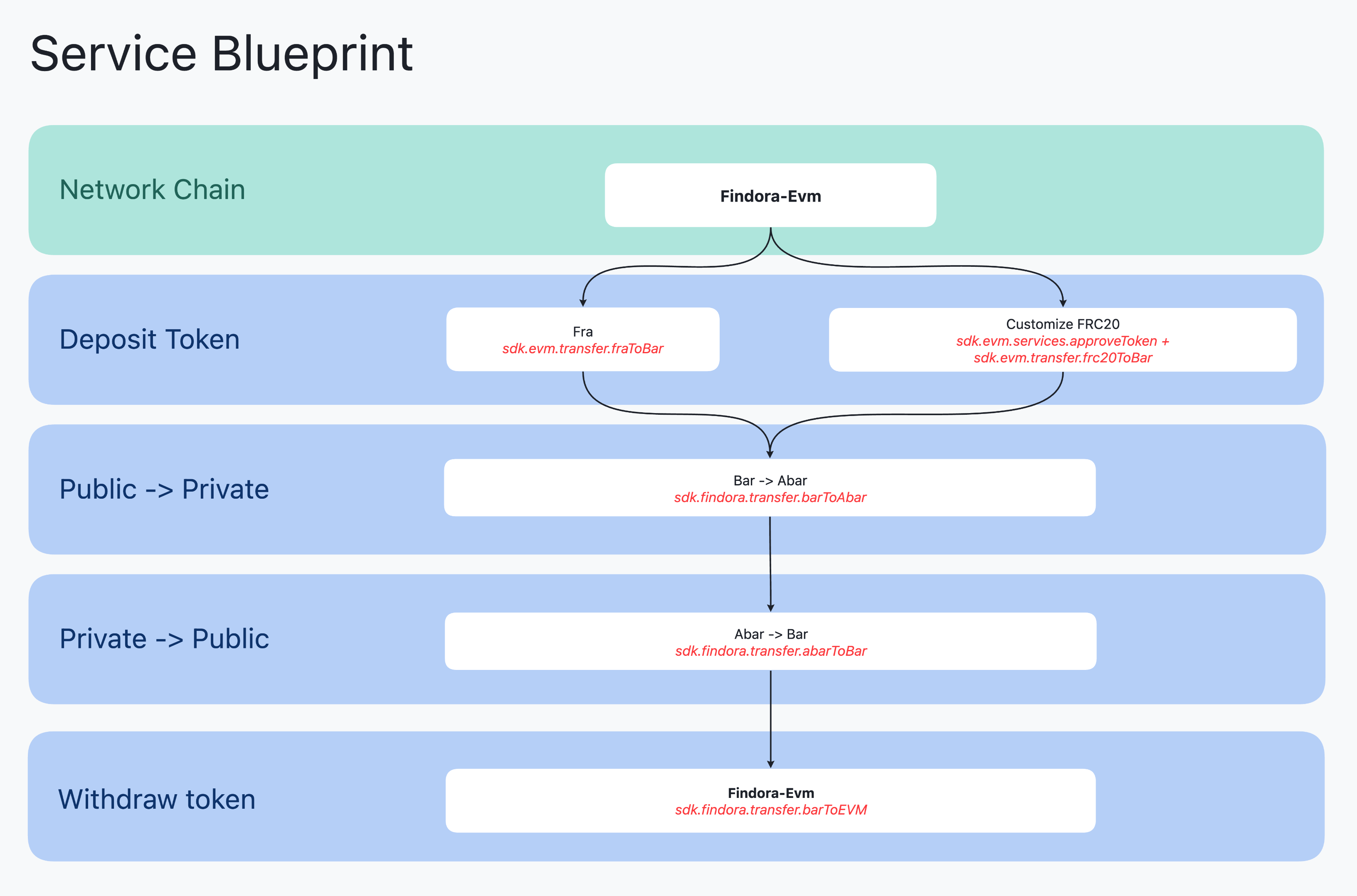

Using Privacy-Routing-SDK for a complete anonymous routing in 4 steps

  • (1) Send assets From Findora EVM to Findora Native Chain

    • Send FRA token to Findora Native Chain

    await evm.transfer.fraToBar({
  bridgeAddress: simBridgeAddress, // bridge contract address
  recipientAddress: walletStart.address,     // wallet account address
  amount: "100", // amount in String
});

    • Send FRC20 token to Findora Native Chain

    /**
Parameters
  bridgeAddress: simBridge contract address
  tokenAddress: FRC20 token address
  totalAmount: send amount
  recipientAddress: wallet account address
 */
await evm.services.approveToken(tokenAddress, simBridgeAddress, tokenAmount);
return await evm.transfer.frc20ToBar({
  bridgeAddress: simBridgeAddress,
  walletStart.address,
  tokenAddress, // 0x5b15Cdff7Fe65161C377eDeDc34A4E4E31ffb00B for zkUSDT on Forge testnet
  "100", // amount in String
});

// wait till the txn in successful and the assets converted
// the first findora wallet should receive 3 utxo [asset, bar2abar_fee, bar2evm_fee]
      const { error: waitEvmToNativeUtxoError } = await findora.services.waitUtxoEnough(walletStart.publickey, 3);
      if (waitEvmToNativeUtxoError) throw waitEvmToNativeUtxoError;

  • (2) Convert assets from BAR to ABAR in Findora Native Chain (entering anonymous cycle)

import { findora } from "privacy-routing-sdk";

// Fetch the converted asset Sids
// Sids are the index IDs of the UTXO in FRA chain
const { response: sids } = await findora.apis.getOwnedSids(walletStart.publickey);
/**
Parameters
  sids: consumable utxo sids
 */
const barToAbarResult =  await findora.transfer.barToAbar(
  walletWrap, // created earlier
  sids
);

if (barToAbarResult.txnLog) throw new Error(`barToAbar Error: ${barToAbarResult.txnLog}`);
console.log('barToAbar txnHash: ', barToAbarResult.txnHash);

// wait for 30 seconds

  • (3) Convert assets from ABAR to BAR in Findora Native Chain (leaving anonymous cycle)

import { findora } from "privacy-routing-sdk";

// commitments are the anonymous version of a private UTXO
// you can spend commitments owned by your anonWallet
const commitments = barToAbarResult.commitments;

/**
Parameters
  commitments: consumable Abar utxo sids
 */
findora.transferabarToBar(
  walletWrap.anonWallet, // created earlier
  walletWrap.walletEnd,  // created earlier
  commitments
);

  • (4) Withdraw assets from Findora Native Chain to Findora EVM

    • Withdraw FRA token to Findora EVM

    import { findora } from "privacy-routing-sdk";

await findora.transfer.barToEVM(
  walletWrap.walletEnd, // created earlier
  "100", // amount
  recipientAddress, // recipient's EVM address
  "",
  "",
  false
);

    • Withdraw FRC20 token to Findora EVM

    import { findora, evm } from "privacy-routing-sdk";

const assetCode = await evm.services.getAssetCode(
  prismBridgeAddress,
  tokenAddress, // FRC20 token address, 0x5b15Cdff7Fe65161C377eDeDc34A4E4E31ffb00B for zkUSDT on Forge testnet
  findoraNetworkRpcUrl // https://prod-forge.prod.findora.org:8545 for Forge testnet
);

await findora.transfer.barToEVM(
  walletWrap.walletEnd,
  "100", // amount
  recipientAddress, // recipient's address
  assetCode,
  "",
  false
);

Boilerplate settings

import { Sdk } from 'privacy-routing-sdk';
import Web3 from 'web3';

export const ENV_CONFIG = {
  hostUrl: 'https://prod-forge.prod.findora.org',
  feeServerUrl: 'https://forge.invisiblex.org/api/fee',
  configServerUrl: 'https://columbus-config.s3.us-west-2.amazonaws.com/columbus_config_forge.json',
  navticeExplorerUrl: 'https://forge.findorascan.io/',
};

export const FINDORA_EVM_CHAIN_ID = '2154';

Sdk.init({ ...ENV_CONFIG, web3: new Web3(Web3.givenProvider) });
